Modern electronics manufacturing demands high-speed, high-precision depaneling to ensure quality and efficiency. Thierry Corp’s PCB Depaneling Systems provide stress-free, clean, and accurate separation of printed circuit boards (PCBs) to support high-volume production with minimal waste.
Reduces mechanical strain on PCBs and components.
Ideal for mass production and automation.
Handles intricate layouts with precision.
Ensures a clean manufacturing process.
Integrates with SMT production lines.
Thierry Corp’s state-of-the-art depaneling machines guarantee precision and efficiency for electronic component production.
Our depaneling systems are designed to meet the rigorous demands of modern electronics production.
Laser, routing, punching – customizable for your needs.
Handles various board materials & sizes.
Seamlessly integrates with SMT assembly lines.
Ensures minimal waste and maximum accuracy.
Request a Quote, Schedule a Demo, or Speak with an Expert
Small, flexible panel separator for connecting the remaining web with a variable work area.
Learn More

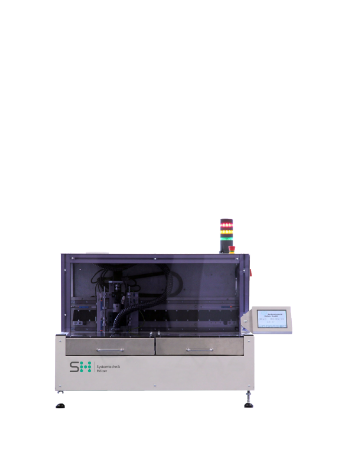

The compact table version LOW MINI was specially developed for depaneling for series with a small format, for small series with a large format and cost-conscious production. Printed circuit board materials, with a residual web connection up to a maximum size of 320 mm x 580 mm, can be separated quickly and economically. The cutting process is servo-controlled in all axes, with the milling drive from above. The change of work area from small (320x280mm) to large (320x580mm) format is the highlight of the machine due to the simple and uncomplicated handling.
Product Data
The concept of manual depaneling offers enormous advantages when it comes to flexibility and costs. Medium production volumes can be separated quickly and with low dust levels with the LOW MINI. Standard features include 1-fold loading in linear motor technology; operation with a 1-fold shuttle is possible to increase the working area. The ease of maintenance and operation combined with the excellent price-performance ratio allows pleasant working and makes the investment in this depanelizer also economically worthwhile.
Options:
Compact depanelizer for flex foils, residual web connection and pre-scored circuit boards.
Learn More

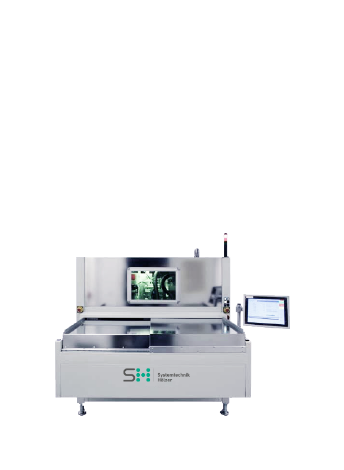

The highly dynamic LOW laser depaneling machine is especially suitable for medium to high product volumes and meets growing requirements in the production process. Printed circuit boards of various materials are made using low-dust, low-stress laser sawing and milling techniques separated
with maximum product flexibility, precision and throughput. Highly dynamic linear motor axes, tools and grippers meet the highest quality standards and guarantee the depaneling machine a long service life and reliability.
Product data
Fully automatic panel separator for residual web connection of pre-scored circuit boards.
Learn More

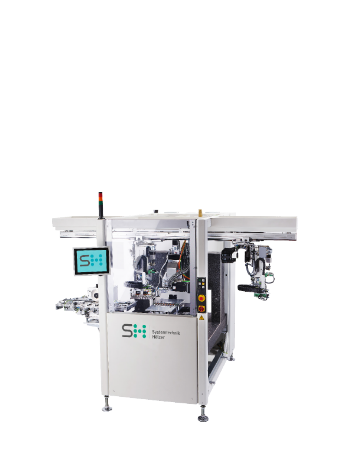

The INT 4646 line machine offers powerful and economical depaneling of printed circuit boards, ideal for high volumes and product variance. With a stand space of (W / D / H) 1,000 mm x 1,850 mm x 1,750 mm, this inline
depanelling machine is one of the most compact models that guarantee fast, low-stress and low-dust depanelling of all types of PCBs.
Product Data
Compact panel separator for residual web connection and pre-scored circuit boards.
Learn More

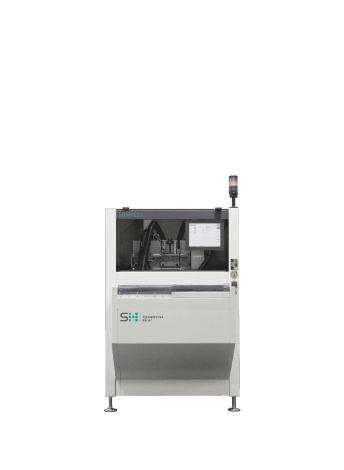

The highly dynamic depaneling machine LOW 4233 is particularly suitable for medium to high product volumes and meets growing requirements in the production process. Printed circuit boards use different materials such as using low-dust and low-stress sawing and milling techniques with the highest amount of product
flexibility, precision and throughput separation. Highly dynamic linear motor axes, tools and grippers meet the highest quality standards and guarantee the depaneling machine a long service life and reliability.
Product Data
Depaneling machine with a large working area for residual web connection with pre-scored circuit boards.
Learn More

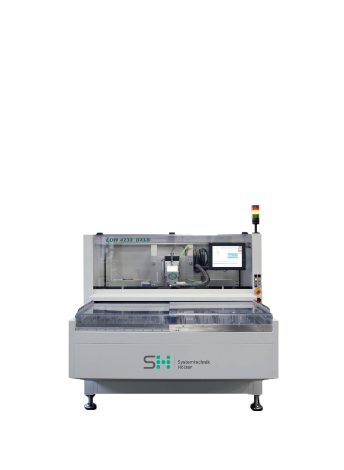

The highly dynamic depaneling machine LOW 4233 XL is especially suitable for medium to high product volumes and meets growing requirements in the production process. Printed circuit board benefits from a wide variety of materials which are made using low-dust and low-stress sawing and milling techniques with the
highest product flexibility, precision and throughput separation. Highly dynamic linear motor axes, tools and grippers meet the highest quality standards and guarantee the depaneling machine a long service life and reliability.
Product Data
Special solutions for processing KLT and Trays.
Learn More

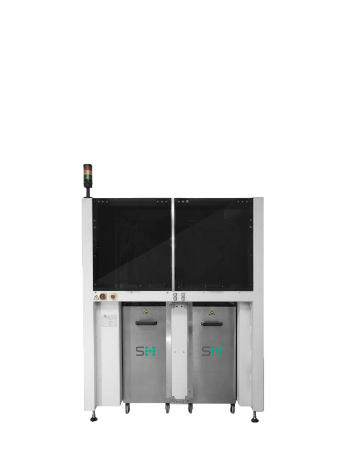

Tray loader TL-6040 - 2-lane stacking module for the economical transport of trays (boxes) for printed circuit boards. The empty trays are removed from the transport trolley, automatically positioned and made available for assembly. Automatically stacked after filling on a 2nd transport trolley ...
Product Data
